PRODUCTS
PRO SOUND BED
The practical sound bed with unique options such as playing automatics or pickup system.
read more
PRO AUTOMATIC PLAYER
The programmable automatic player opens up a new range of applications.
read more
PRO SOUND MASSAGE
The massage set expands the sound bed with adjustable headrest and stiffening feet.
read more
tuning tables
For example, the interval tuning table for the CLASSIC SOUND LOUNGER.
see all tuning tables

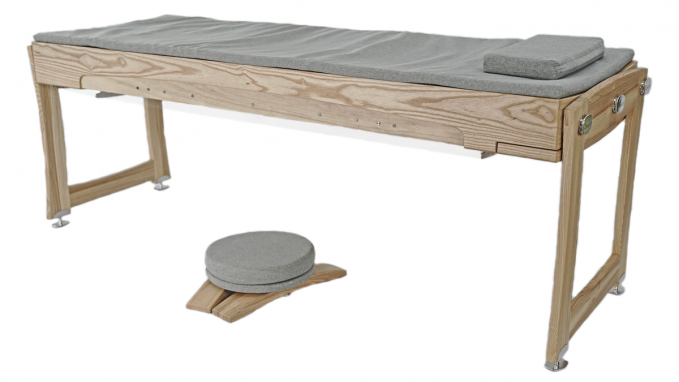

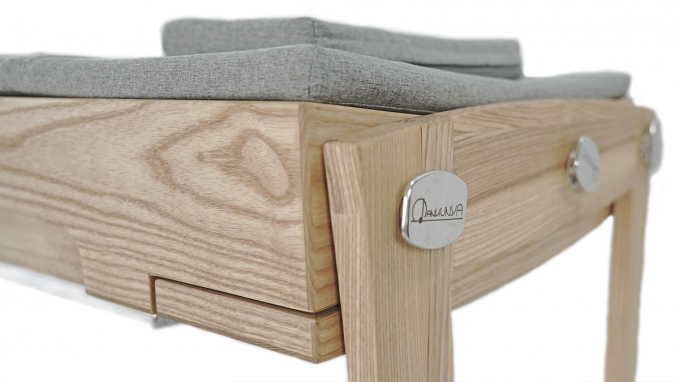

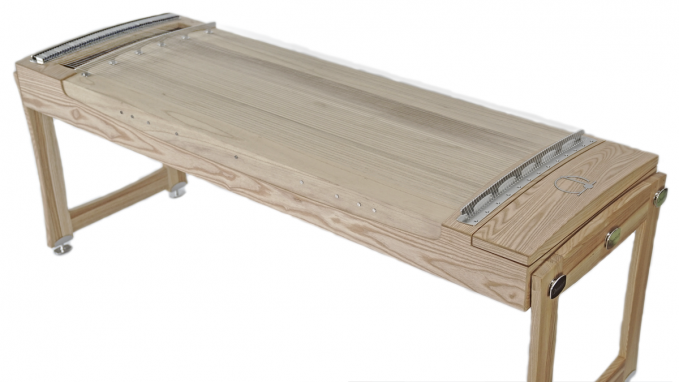

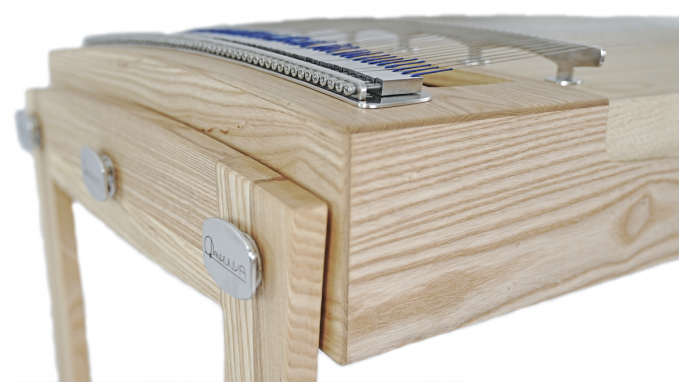

CLASSIC SOUND LOUNGER
All wooden parts are made of solid wood and repeatedly treated with hard wax oil.
The sound panels are traditionally crafted from the wood of the plane tree, which is first boiled in water to make the wood dimensionally stable and wash out impurities, which refines the sound properties.
In the standard version, the top wood and the frame legs are made of natural or dark treated ash wood. Other woods are available upon customer request.
All functional parts and strings are made of stainless chrome steel for easy handling and long-lasting stability.
lying surface
The inwardly shaped lying surface measures 200 x 68 cm and conveys a sense of security on the comfortable mat with cushion. The shaped sound body also makes the instrument extremely stable and sustainable.
Strings
The instrument is vibrated powerfully with 40 flat wound bass strings and the 20 open octave strings cast an angelic spell.
Keynotes: B1-C#2 / B2-C#3, 432 Hz

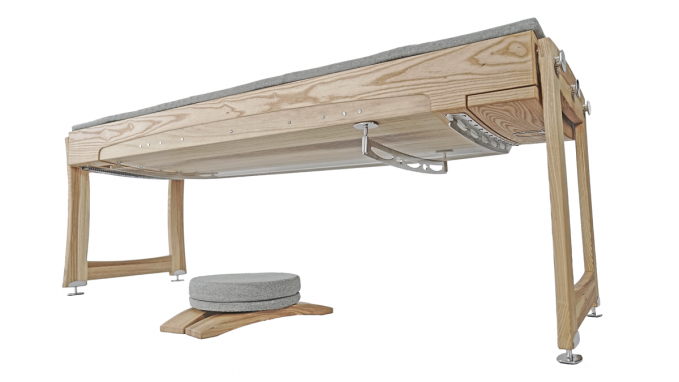

rotation mechanism
The stable rotating mechanism brings the instrument body into the desired position without tools.

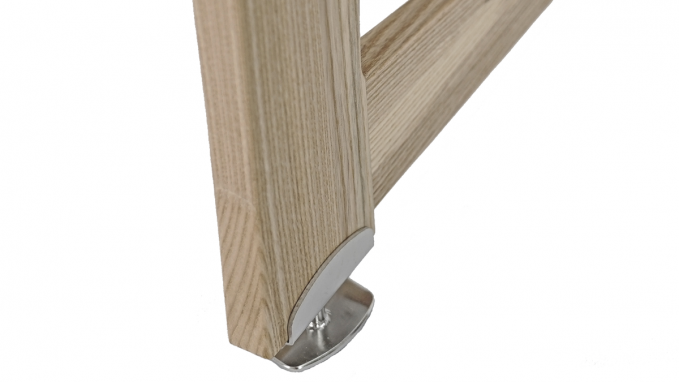

leveling feet
The leveling feet can be used to compensate for uneven floors.
The threaded socket also fits screw-in casters to make the sound lounger mobile.

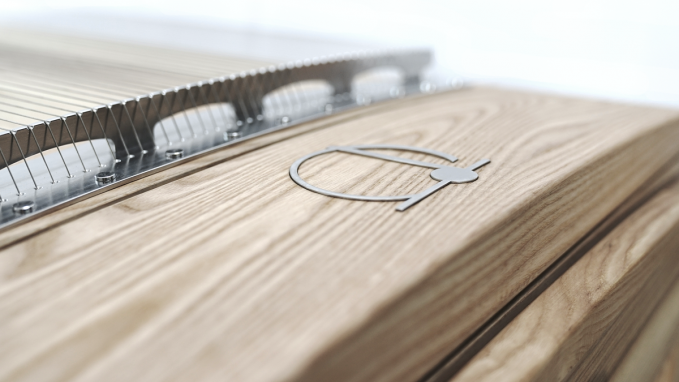

hidden tuning pegs
In the flap under the logo are elegantly and dust-free disguised the tuning pegs. These are only used for changing the strings.
fine tuning
The complex tuning is made easy by the fine tuning and tunes very precisely with a rotary ratio of 1:20.

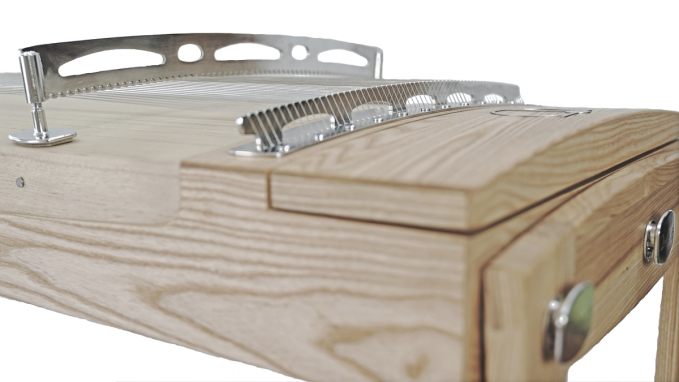

adjustable string bridge
Any number of strings can be hooked into the adjustable string bridge to intergrate an interval or retune the entire sound to a desired pitch, such as planetary frequencies.

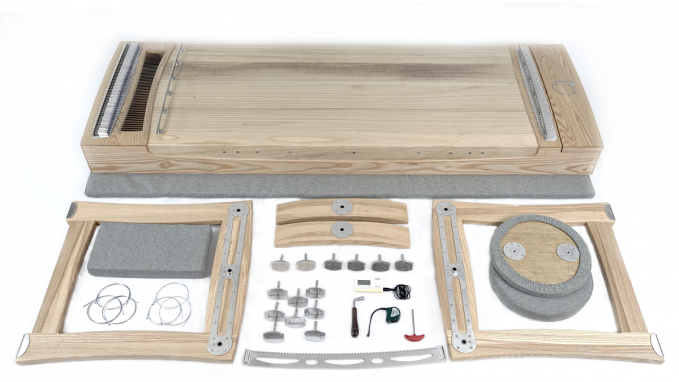

scope of delivery
The sound lounger is packed in a padded and rollable wooden box and includes all parts shown in the photo.
Mass: 212*68*76 cm / 43 kg
Pack: 212*73*59 cm / 52 kg

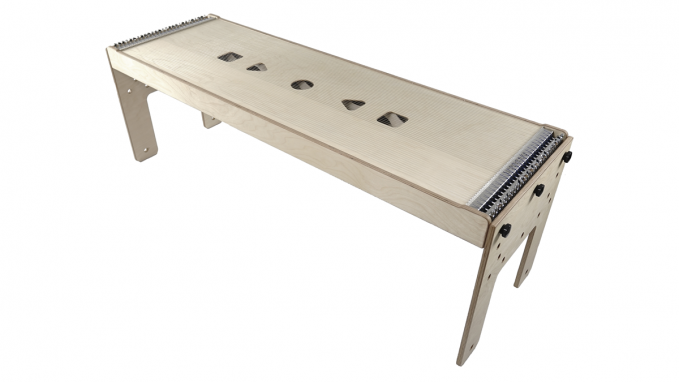

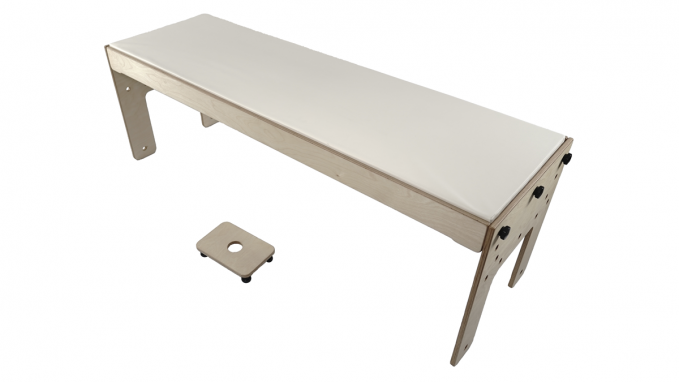

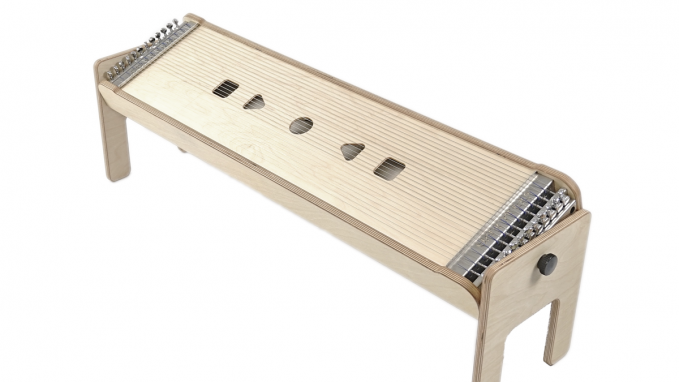

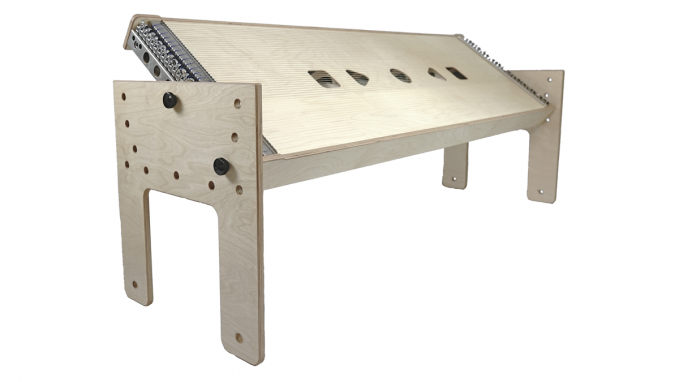

pro sound bed
the following design aspects apply to all PRO instruments.
Creating an affordable sound bed with top features was achieved by using as many standard parts as possible and the efficient construction method.
The sound bed is made of high quality birch plywood in a novel construction method to achieve a light and slender sound body that is both sonorous and stable.
Despite the low price, all functional parts and strings are made of stainless chrome steel, which ensures easy handling and long-lasting stability.
A novelty are the reinforced guitar tuning pegs, which defy the high string tension and provide very precise tuning.
The distinctive sound holes also serve as overtone markers.
lying surface
The lying surface with recessed faux leather mat measures 190 x 60 cm and can be extended with an optional headrest.
strings
The instrument is vibrated powerfully with 36 flat wound bass strings and the 18 open octave strings cast an angelic spell.
Keynotes: F1-A1 / F2-A2, 432 Hz
rotating mechanism
The stable rotating mechanism brings the instrument body into the desired position without the need for tools and even compensates for uneven floors independently.

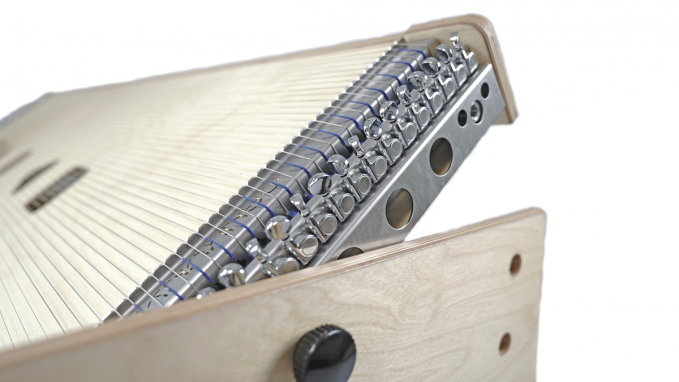

guitar tuning pegs
The complex tuning is made easy by the guitar tuning pegs and tunes very precisely with a 1:16 rotary ratio.

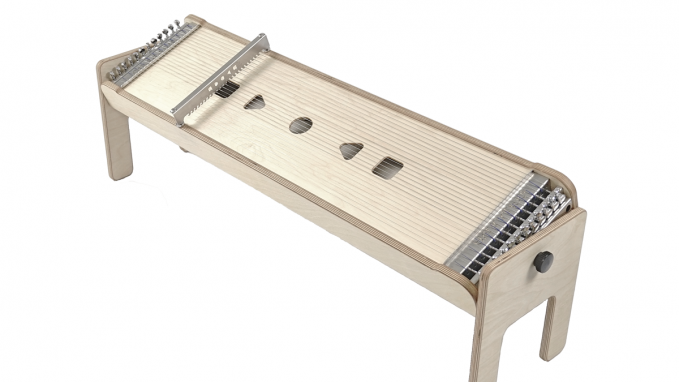

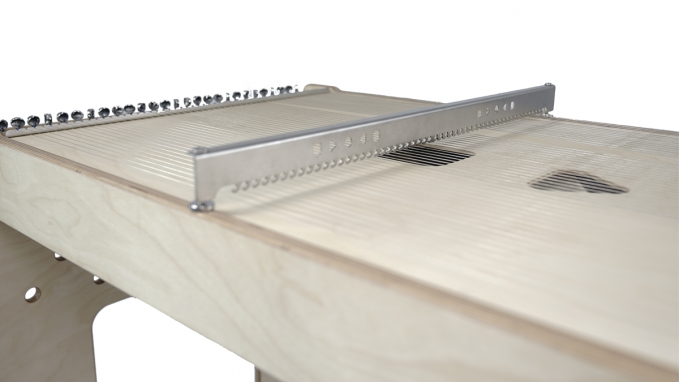

adjustable string bridges
Two adjustable string bridges are available to integrate an interval or to retune the entire sound to a desired pitch, e.g. planetary tones.

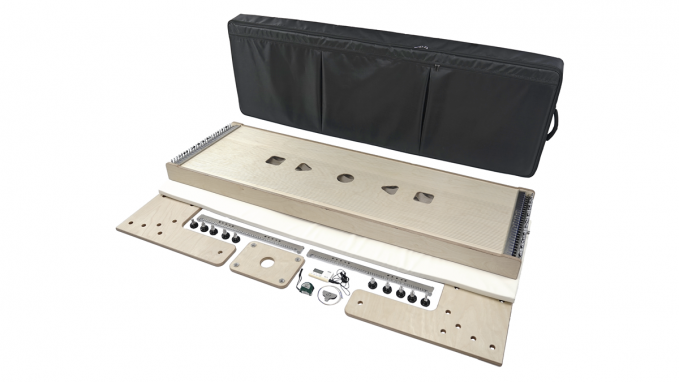

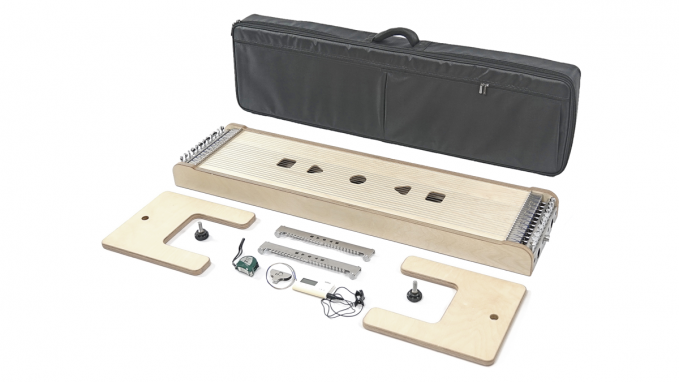

scope of delivery
The sound bed and accessories are packed in a padded instrument bag and includes all parts shown in the photo.
Mass: 196*60*66 cm / 36 kg
Pack: 196*67*19 cm / 40 kg

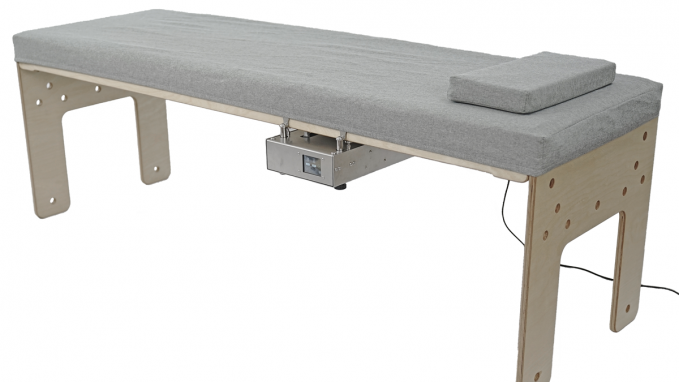

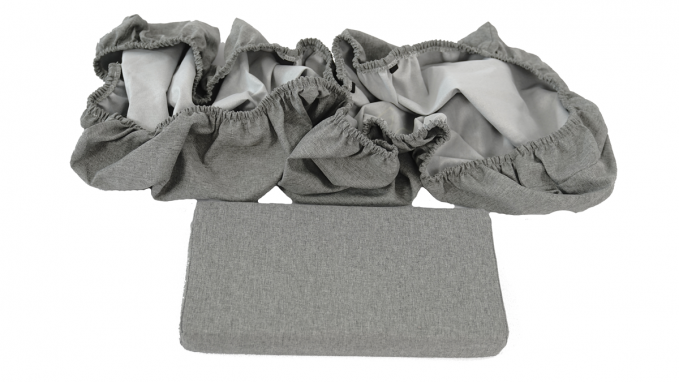

Cover with pillow
Optionally, there is a set of pillows and cover for the sound bed to increase the comfort of lying.

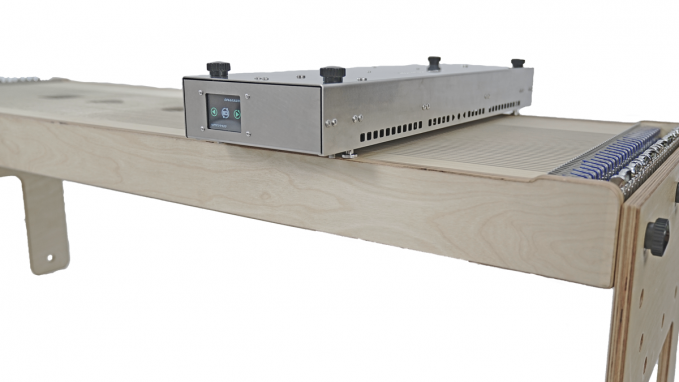

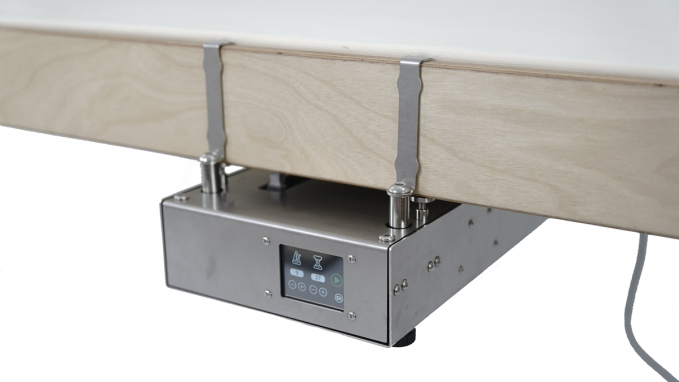

pro automatic player
The automatic player can be clamped to the sound bed without tools and the desired playing time and speed can be set via a touchscreen.
With the advanced settings, further parameters can be set to make the automatic play seem deceptively human.
In addition to self-playing, the automatic play is also helpful for integrating a facial massage, fine massage or playing with other sound instruments at the same time.
playing fingers
There are 3 different playing finger widths available to achieve the balance of perfect sound and optimal vibration.
positioning
In the test run mode, the appropriate height is set with the leveling feet. The height and longitudinal displacement influence the sound image and the vibration strength.
Clamp mounting
Clamps are mounted without tools so that the automatic player is held in place when the sound body is turned. The sounding body can also be fixed at stool bench height with the automatic playing mechanism.

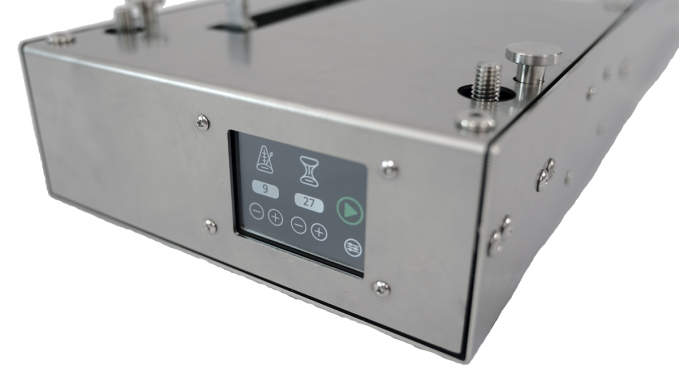

Touch screen
User-friendly, the touchscreen can be used to set all parameters for the playing.
After set all, the touchscreen becomes a big button to start blindly from bed.

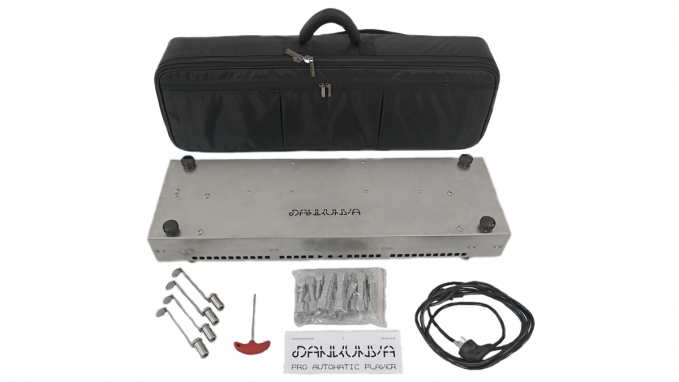

scope of delivery
The automatic player and accessories are packed in a padded equipment bag and includes all parts shown in the photo.
Pack: 85*29*18 cm / 13.5 kg

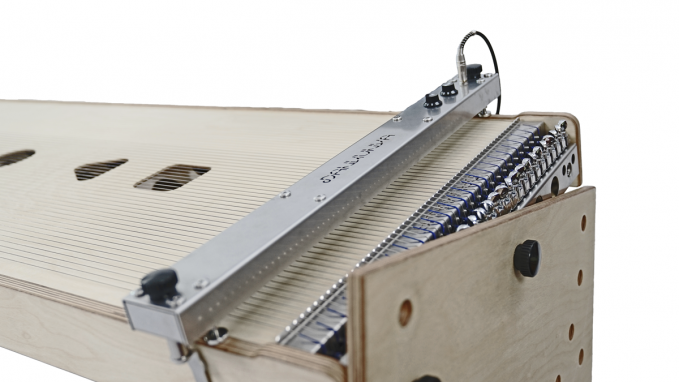

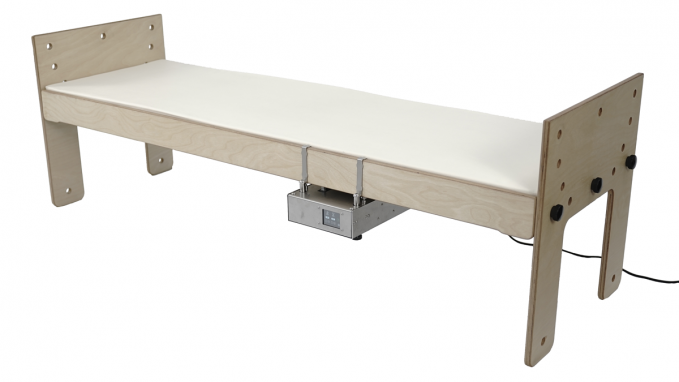

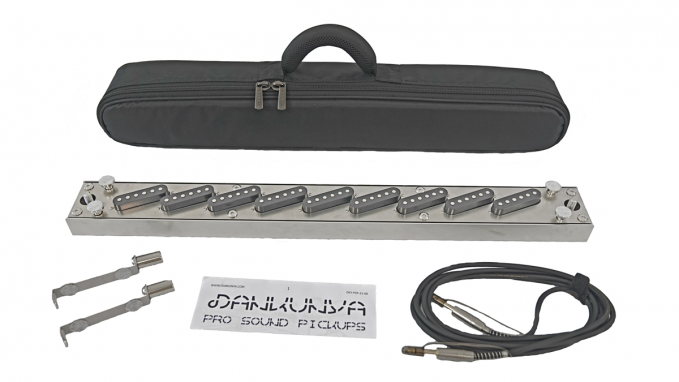

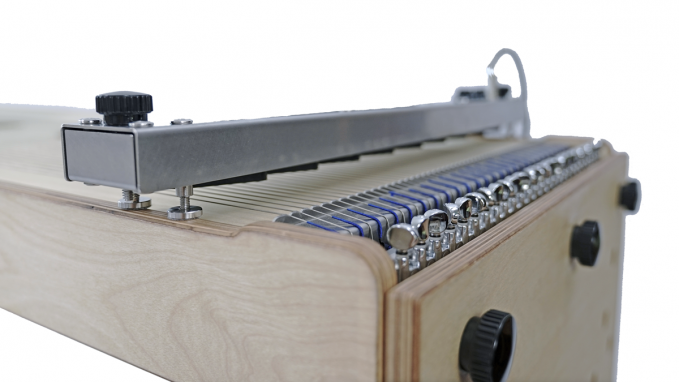

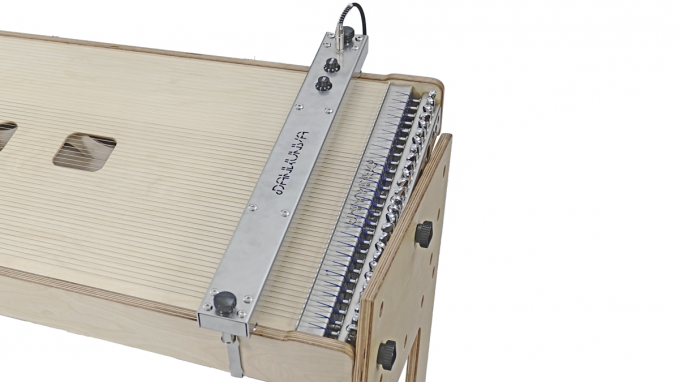

pro sound pickups
The pickup bar is a very helpful option when you need to amplify the sound, for example, for a large room.
The way it works is similar to the electric guitar.
With the appropriate equipment, it is easy to loop in sound effects and thus change the typical sound pattern.
Positioning
The pickup bar is placed on the instrument and adjusted to the appropriate position with the leveling feet. The height and longitudinal displacement influence the sound image.
Clamp mounting
To ensure that the pickup bar holds when the sound body is turned, clamps are mounted without tools.
scope of delivery
The pickup bar and accessories are packed in a padded equipment bag and includes all parts shown in the photo.
Pack: 75*15*14 cm / 4 kg
pro sound massage
Basically, a sound bed is not a massage table and a classic body massage is, according to experience, disturbing during a sound massage.
On the other hand, a fine massage, head massage or acupressure fits very well during the sound massage.

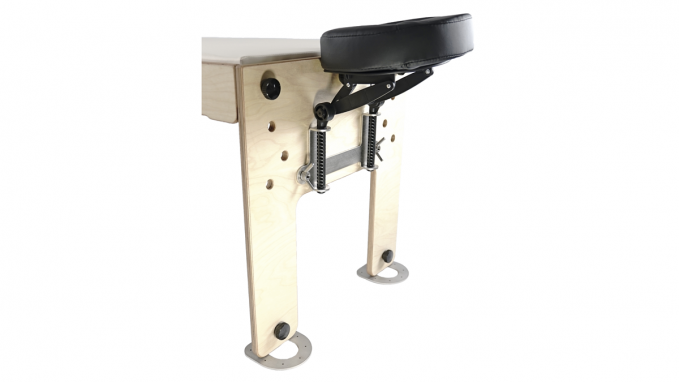

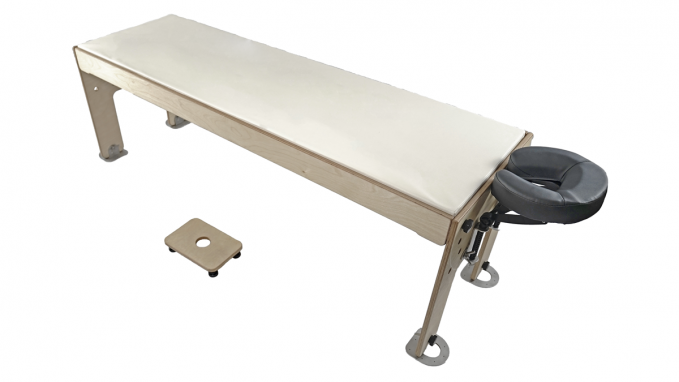

headrest, stiffening feet
The headrest comfortably supports the head in the prone position and at the same time extends the lying surface.
The stiffening feet stabilize the sound bed for the different directions of movement of a massage.

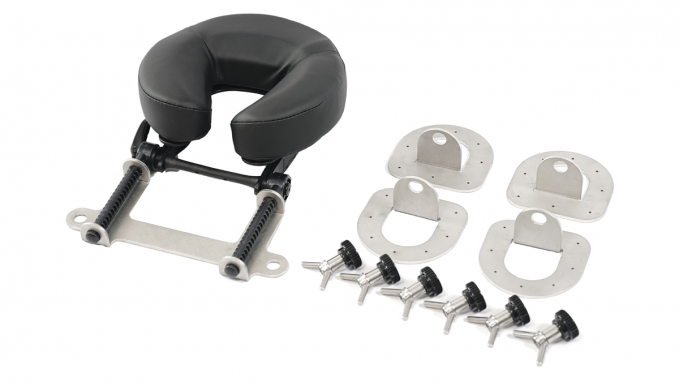

scope of delivery
The set consists of stiffening feet, headrest with bracket and mounting screws according to the photo.
Pack: 30*31*18 cm / 5.5 kg
pro maxi chord
The monochord is developed under the same design aspects as the PRO SOUND BED and described in detail there.
strings
The instrument is pleasantly vibrated with 16 flat wound bass strings and angelically enchanted by the 8 open octave strings.
Keynotes: C2-F2 / C3-F3, 432 Hz
scope of delivery
The monochord and accessories are packed in a padded instrument case and includes all parts shown in the photo.
Mass: 125*30*36 cm / 13 kg
Pack: 125*35*17 cm / 15 kg

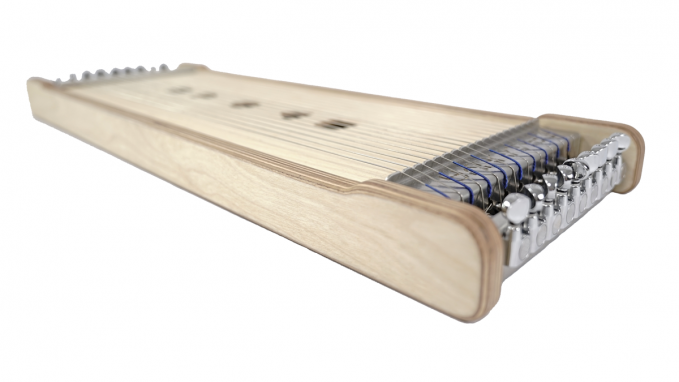

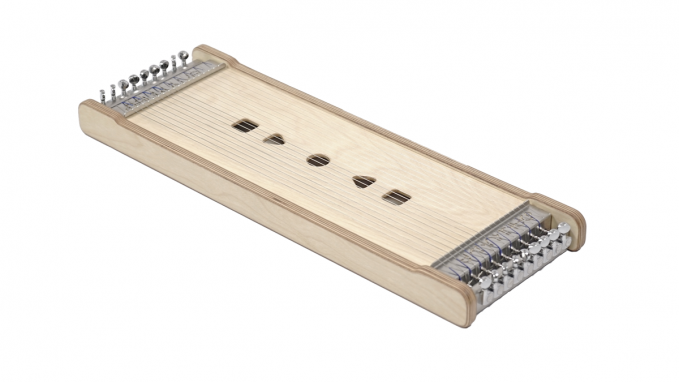

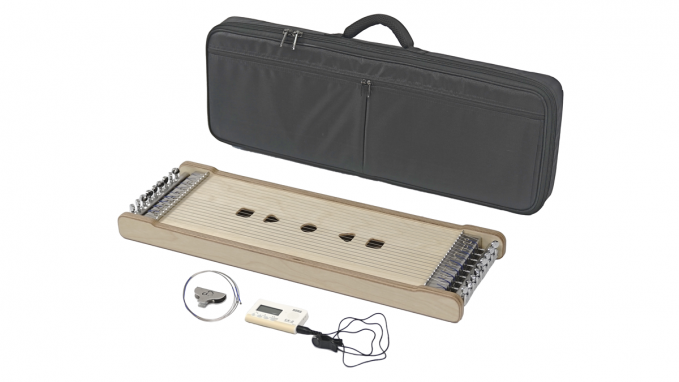

pro mini chord
The monochord is developed under the same design aspects as the PRO SOUND BED and described in detail there.
strings
The instrument is gently vibrated with 9 flat wound bass strings and angelically enchanted by the 9 open octave strings.
Keynotes: F2-F3 / F3-F4, 432 Hz
scope of delivery
The monochord and accessories are packed in a padded instrument case and includes all parts shown in the photo.
Mass: 72*24*6 cm / 5 kg
Pack: 83*30*12 cm / 6 kg
tuning tables
classic sound lounger

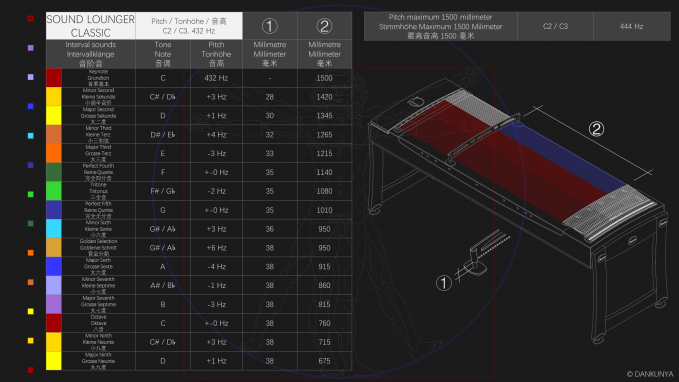

intervals
Base pitch: C2 / C3

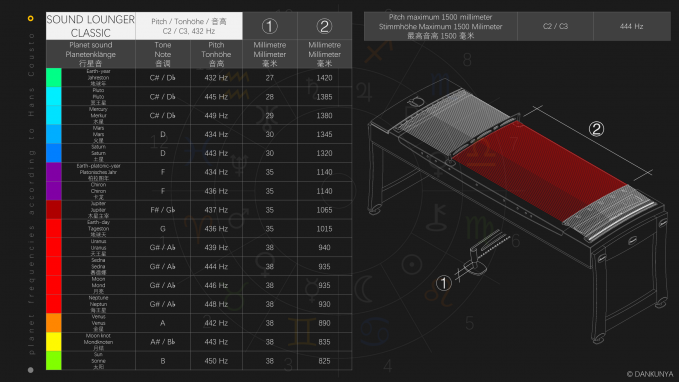

planet frequencies
Base pitch: C2 / C3

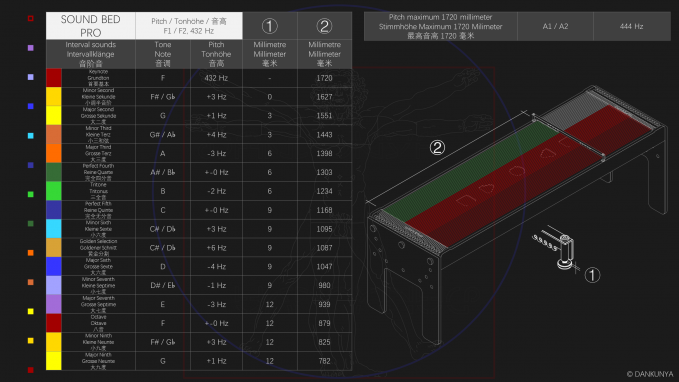

pro sound bed
Intervals
Standard base pitch: A1 / A2
Intervals
Softest base pitch: F1 / F2

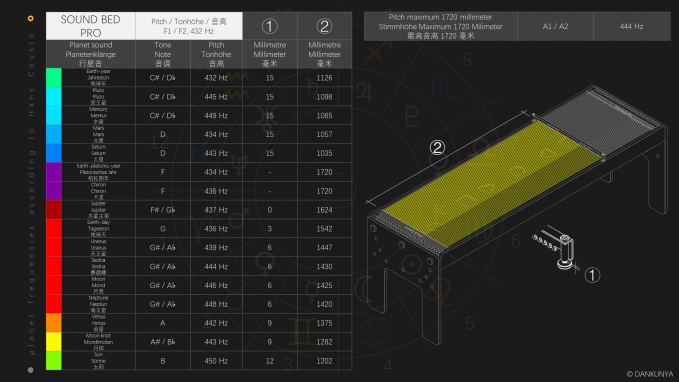

pro sound bed

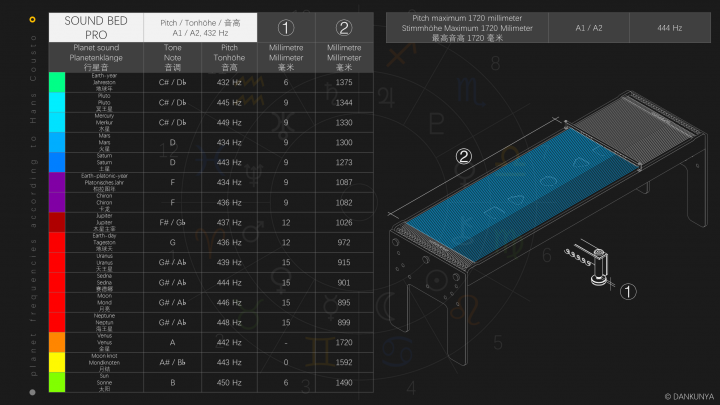

planet frequencies
Standard base pitch: A1 / A2
planet frequencies
Softest base pitch: F1 / F2
pro maxi chord
Intervals
Standard base pitch: F2 / F3
Intervals
Softest base pitch: C2 / C3

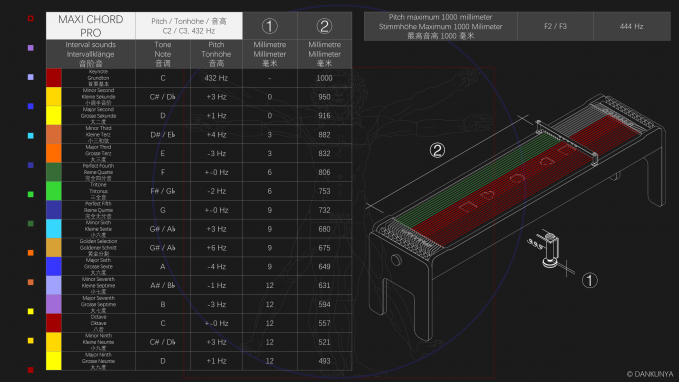

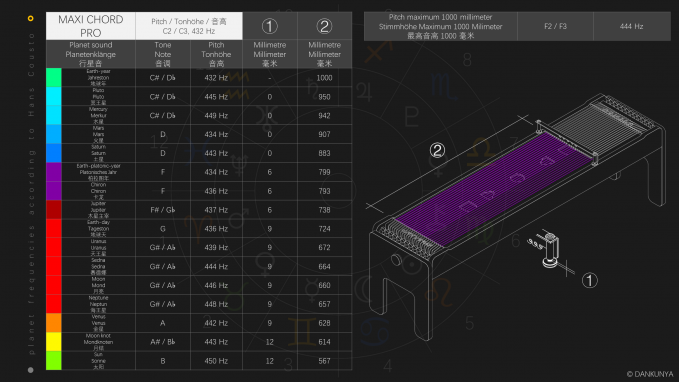

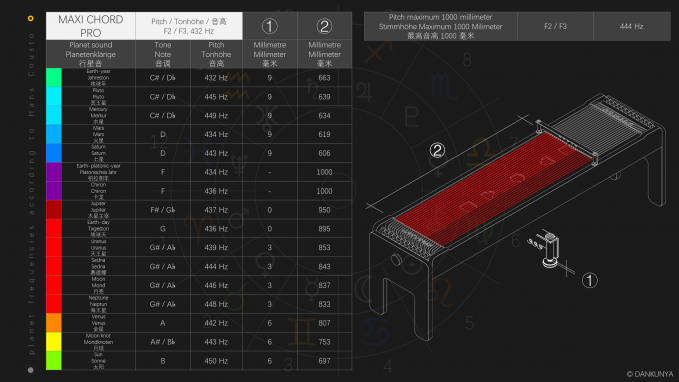

pro maxi chord
planet frequencies
Standard base pitch: F2 / F3
planet frequencies
Softest base pitch: C2 / C3

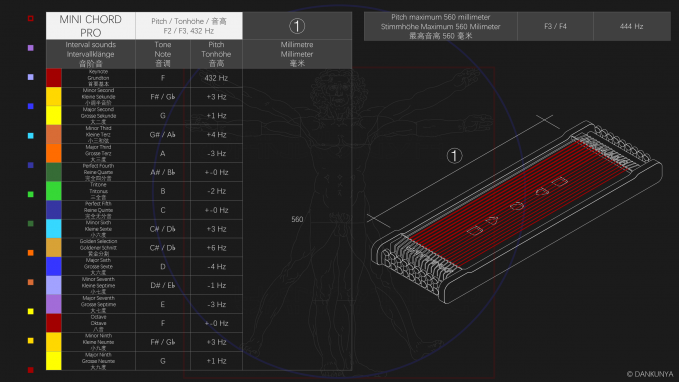

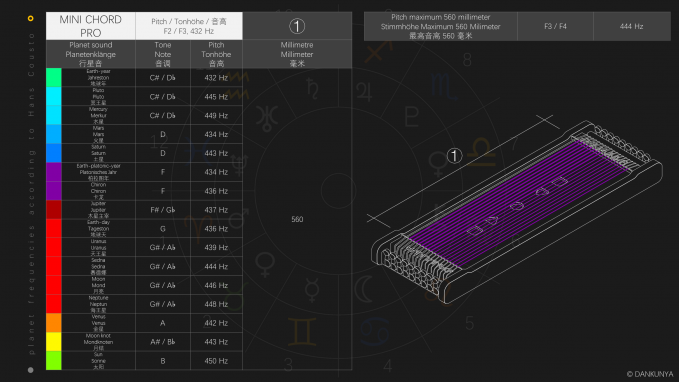

pro mini chord
Intervals
Direct tuning without adjustable string bridge.
planet frequencies
Direct tuning without adjustable string bridge.
